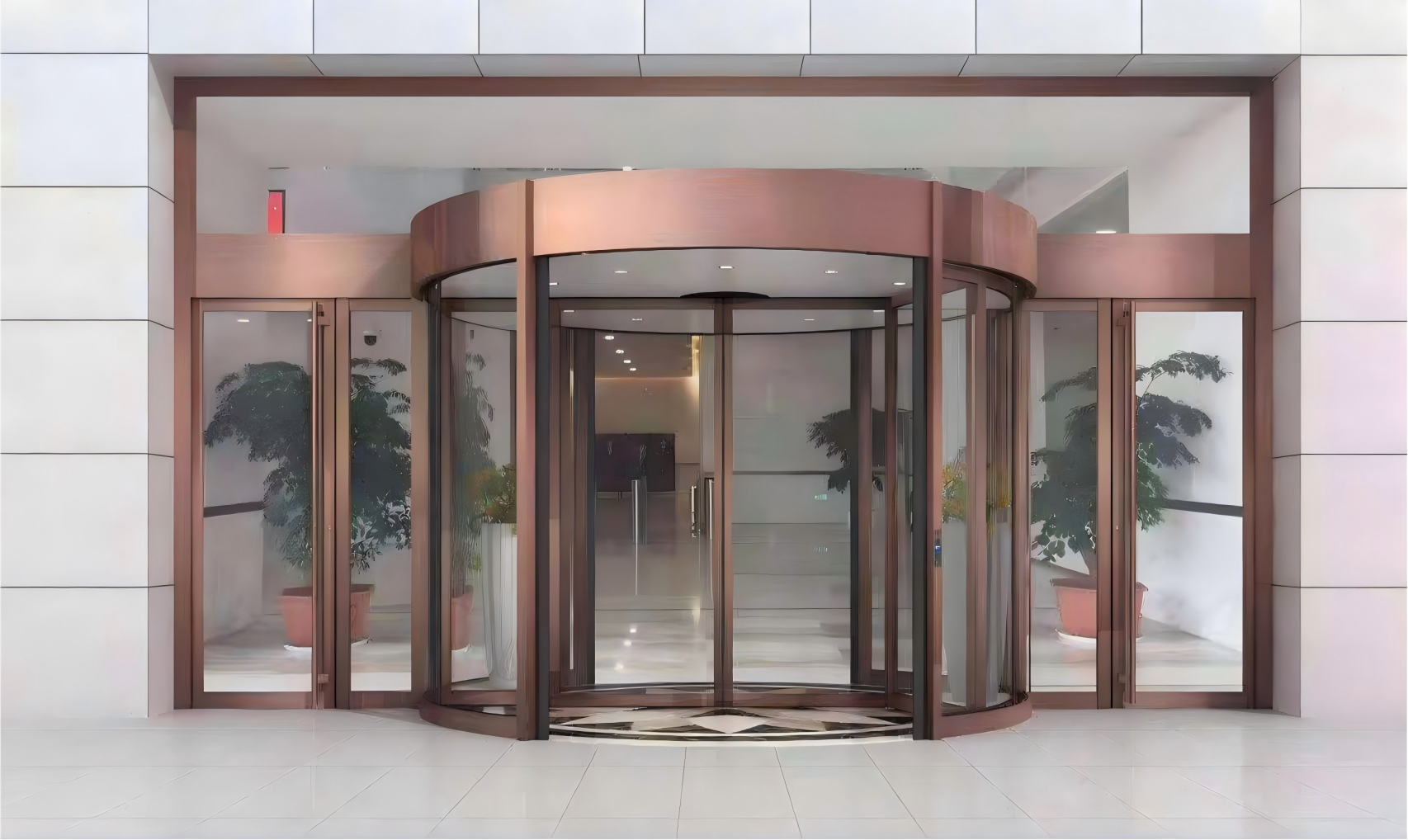

2-wing Automatic Revolving Door

2-wing automatic revolving door combines revolving and sliding functions, with PLC control and multiple safety devices. Elegant appearance, stable operation and fire emergency accessible. Ideal for high-end hotels, shopping malls, office buildings, exhibition centers and commercial complexes.

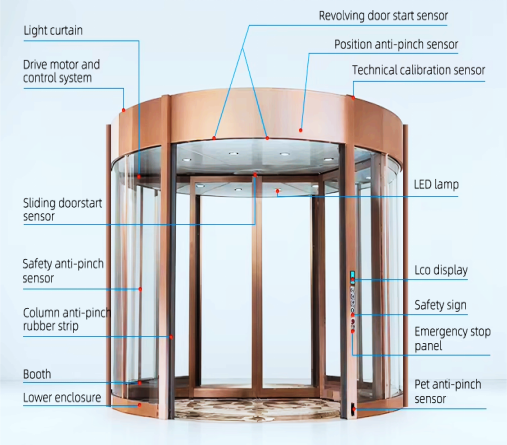

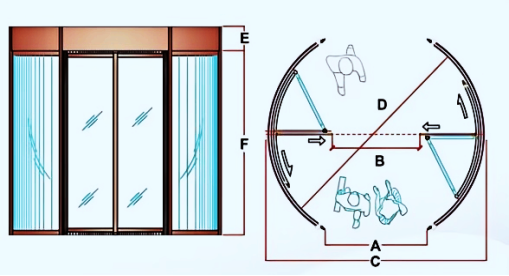

2-wing Door Technical Data & Structure

Operating Voltage：AC220V/50Hz

 Startup Power Consumption：< 260W

 Usage Power Consumption：< 550W

 Standby Power Consumption：< 50W

Normal Operation：3-4 revolutions/min

Slow Speed Operation：1.5 revolutions/min

Revolving Door Operating Capacity:12 people/min

Sliding Door Operating Capacity:22 people/min

Inverter Model：BFV00075GK, 0.75 kW

Inverter Operating Voltage：AC200-230V 50/60Hz

Inverter rated Output Current：3.8A

Inverter Rated Output Capacity：1.5kVA

Inverter power capacity：1.8kVA

PLC model：FPX0L-30R

PLC Operating Voltage：100-240V AC

PLC Output Voltage：24VDC +10%

Touch Screen Model：AIG02GQ02D

Touch Screen Operating Voltage：5V DC
