Sliding Automatic Door


Availability:

Quantity:

Inquire Add to Basket

Model:
SD
Brand:
OTMAKER
Code:
ATMAKERSD001

Sliding automatic doors are an automated door system that opens and closes by means of a motor-driven door leaf that slides along a horizontal track. Its core operating mechanism is "left and right sliding opening and closing". It is a classic automatic door type that combines convenience and spatial adaptability, and is widely used in various scenarios such as office buildings, hospitals, convenience stores, and office buildings.

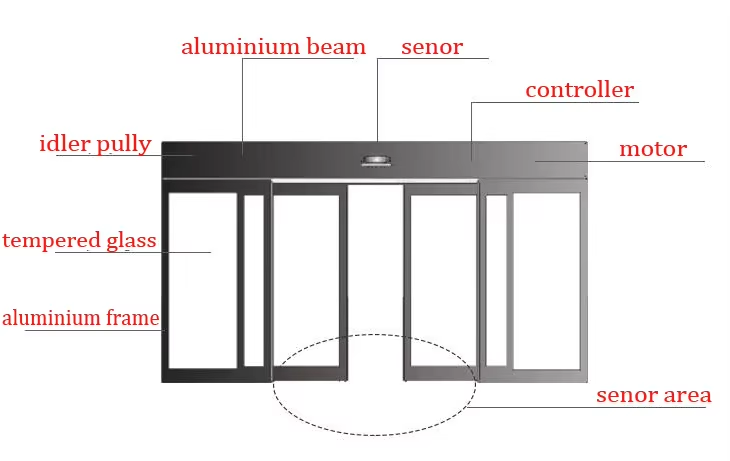

Product Structure Introduction

Specifications

Technical Drawings

英文结构图

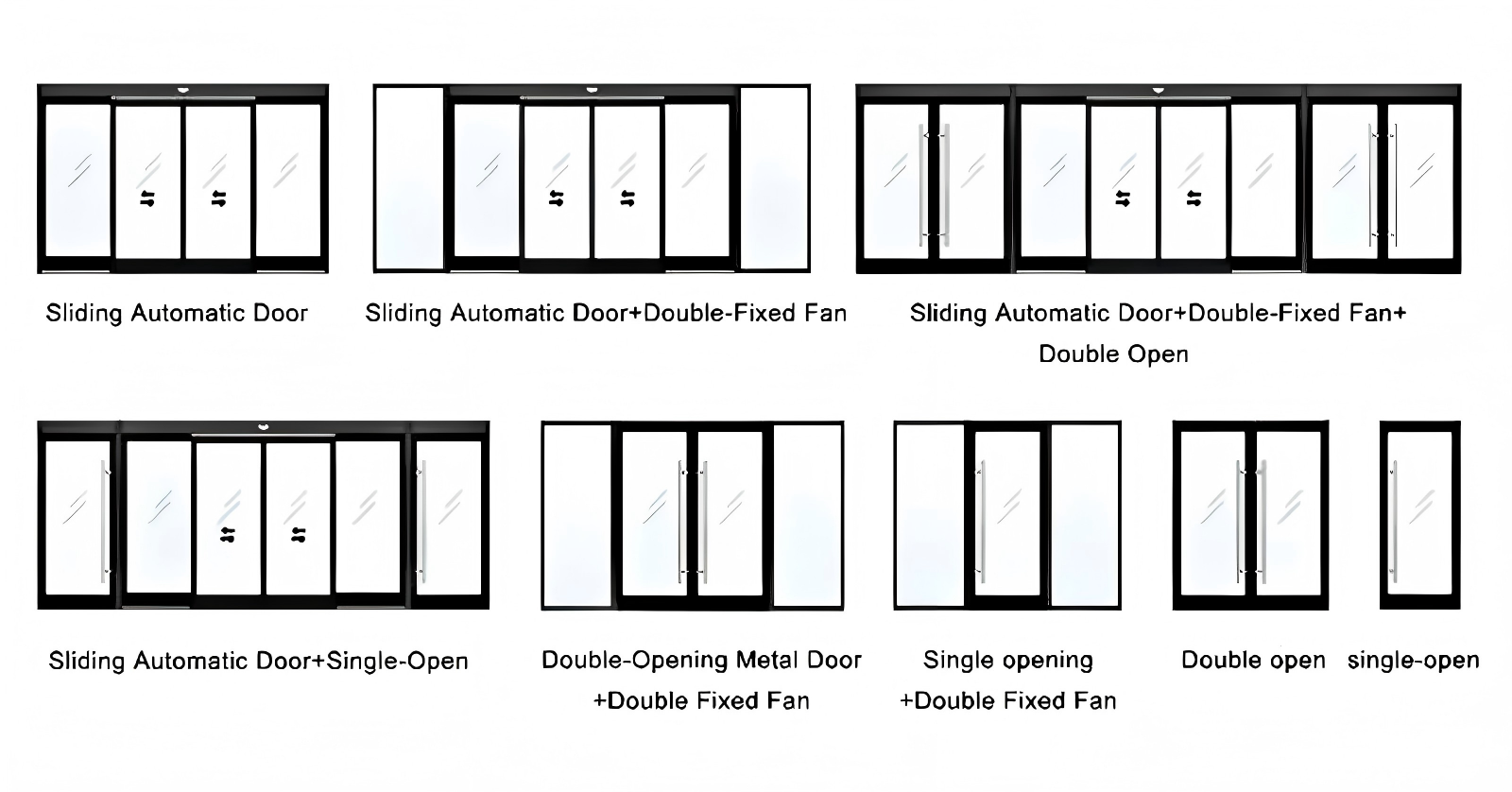

Sliding Door Combination

Technical Parameters

Aluminium Profiles	Aluminium Alloy	ALU Wall Thickness	Surface Finishing and Color
	6063-T5	1.2mm--2.0mm, Normally 1.4mm for window, 2.0mm for door	Anodized, Sliver & Bronze
			Powder Coating, colore should be confirm with buyer
			Electrophoresis, Sliver& Champagne
			PVDF
	With thermal break aluminium system design for more energy saving function
Glass	Type	Thickness	Color
	Float glass	Single: 4mm -12mm, Double Glazing (With 6A/9A/12A/27A space)	clear/super clear/ tinted blue/green/coffee brown/grey
	Insulated double glass
	Insulated triple glass
	Reflective glass
	Low-E glass
	Tempered glass
	Laminated glass
	Customized art glass
Hardware	High quality, made in China of well-know brand (Kinlong )/ made in Germany (Siegenia /Roto )
Accessories	Use EPDM sealant rubber
	Stainless steel 304# accessories.
Production standard	Basis on the shop drawings which approved by the buyer
