HD
OTMAKER

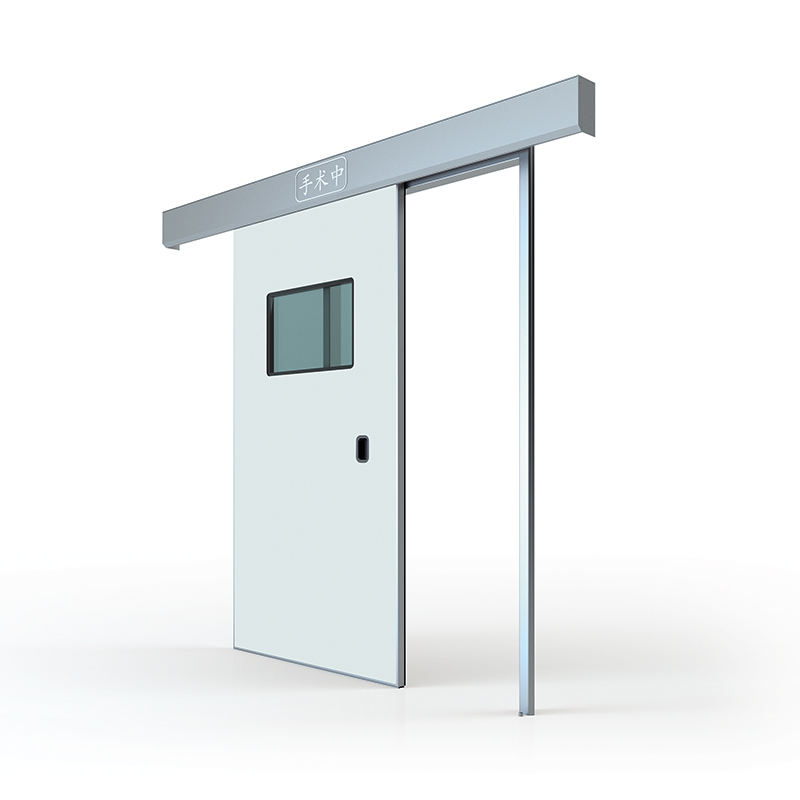

Product Name | Hermetic Cleanroom Door | Door Frame | Galvanized Sheet Paint 1.2MM |
Door Plank | Galvanized sheet paint 1.0mm (filled paper honeycomb) | Inspection window | Double-sided tempered silk screen glass (customizable) |
Accessories | SUS304 handle and lock, SS304 hinge, screw accessories, sweeping strip (automatic lifting), sealing strip, wall edge, door frame | Airtightness | Hree sides of door panel are pasted with sealing strip |
Configuration | Motor, controller, track, track cover, safety anti-pinch light, foot sensor or radar sensor or hand sensor | Flammability class | A1 |
Appearance Size | 1590*2145mm | Visible Size | 1388*2044mm |
Opening Size | 1500*2100mm | Cob wall | Double-door |
Addressing the Pain Points of Medical Scenarios
Graded Protection, Adaptable to Different Areas
Radiology/CT Room Model: Utilizes a lead plate composite material with a lead equivalent of 1-3mmPb, effectively blocking X-rays and gamma rays to prevent radiation leakage.
Operating Room Model: Features high airtightness, with double-strip sealing strips on the door frame and an automatic door closer, maintaining a sterile operating room environment and reducing air contamination.
General Ward Model: Designed for impact resistance, the door's surface is constructed from scratch-resistant, antibacterial panels (such as HPL fireproof panels) that are resistant to disinfectant corrosion and resist discoloration even after prolonged use.
Hygienic and Easy to Clean, Reducing the Risk of Cross-Infection
The door surface is free of seams and raised handles (mostly hidden sensors or push-to-open mechanisms are used), eliminating hotspots where bacteria can breed. It supports common medical disinfection methods such as 75% alcohol and chlorine-based disinfectants, achieving a 99.9% bacterial kill rate within 30 minutes after cleaning, meeting the strict hygiene standards of medical facilities.
Safe and Convenient, Meeting the Needs of Doctors and Patients

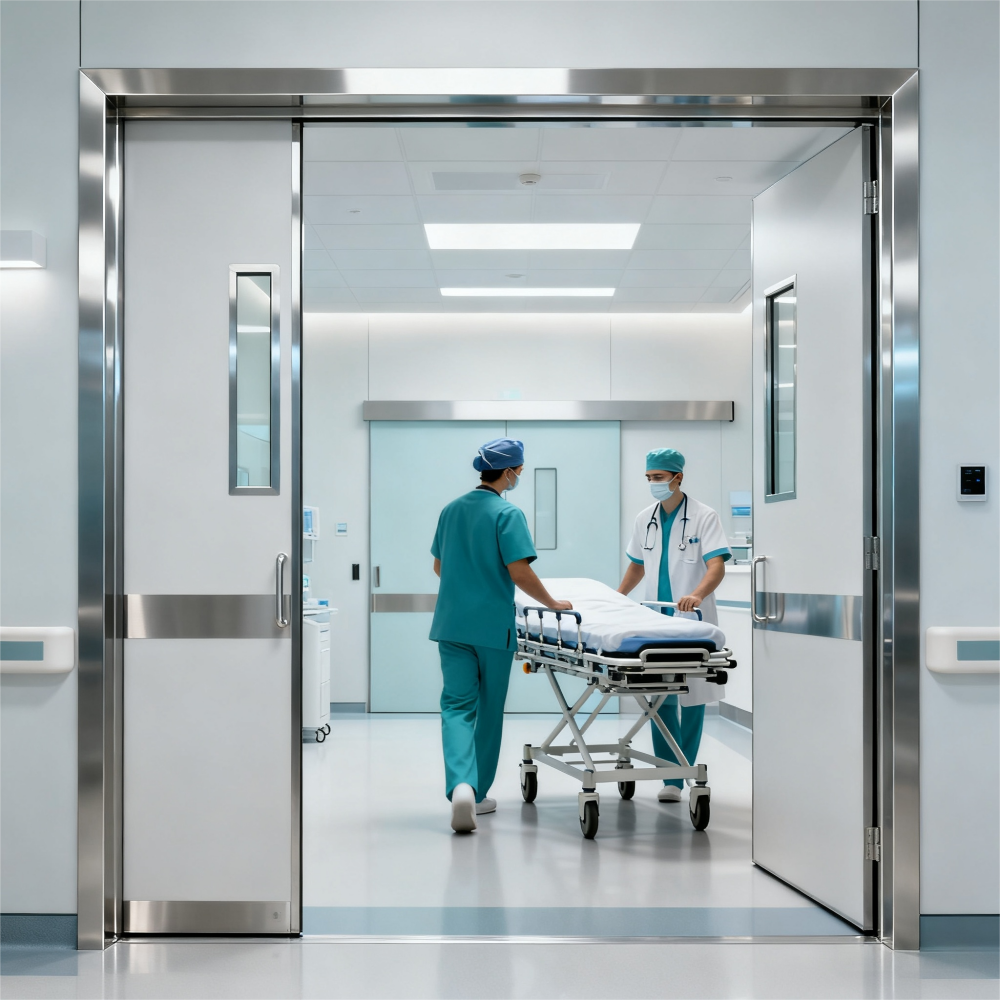

Equipped with a two-way infrared sensor and anti-pinch force feedback device, the door automatically delays closing when a patient pushes a bed or wheelchair through, and immediately reverses when an obstruction occurs. Select models support a "Medical Priority" mode, enabling a single-touch activation of the door's normally open position for convenient emergency transport. It also features an emergency escape function, allowing for easy manual opening in the event of a power outage, ensuring safe passage in emergencies.
Treatment areas (examination rooms, examination rooms): prioritize easy opening and hygienic cleaning
Critical care areas (ICU, operating rooms): emphasize high airtightness and sterile protection.
Special areas (radiology departments, laboratories): prioritize radiation and corrosion protection requirements, providing a safe and reliable environment for medical work.
