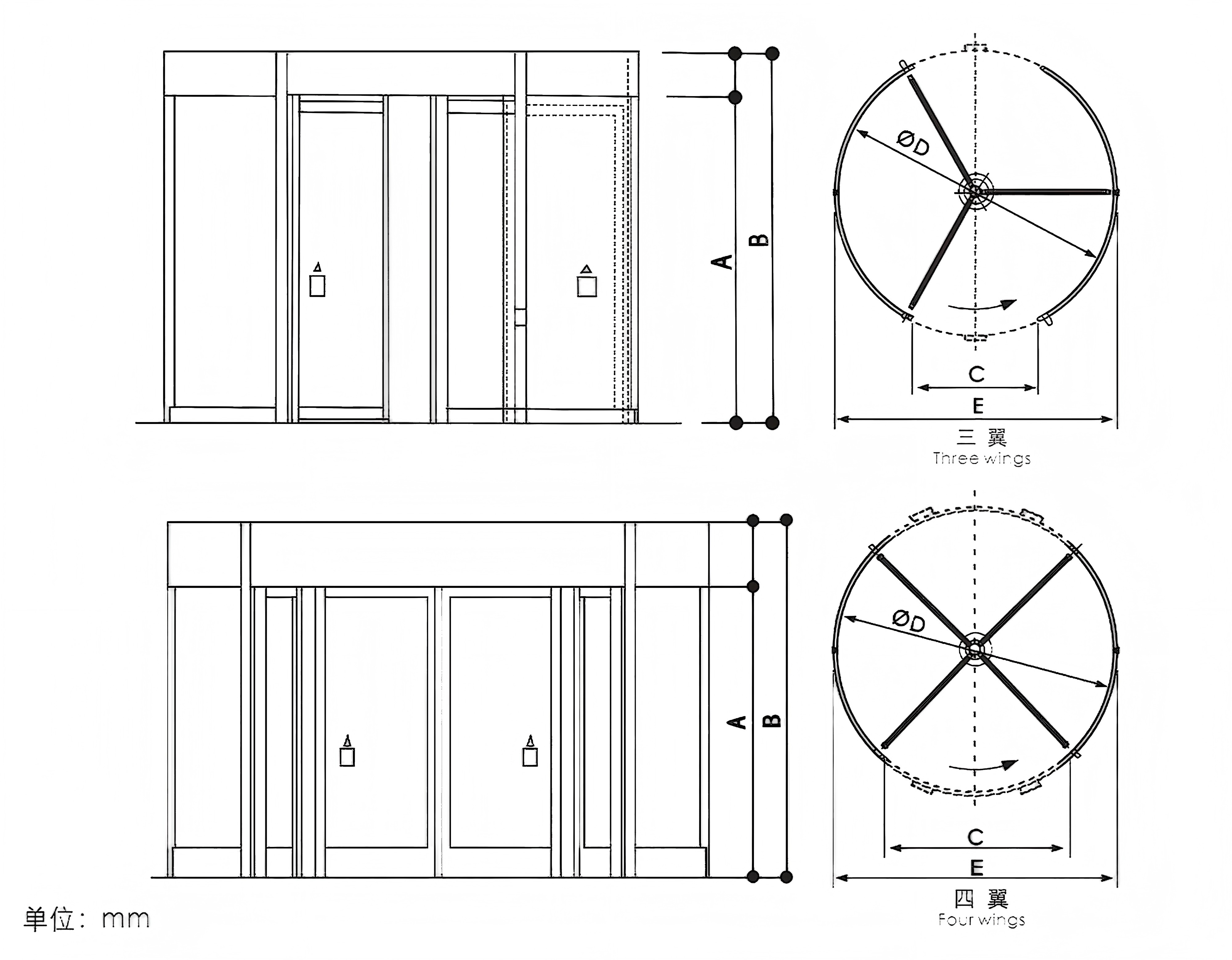

Technical Drawings
Regular Size
Inner Diameter (mm) | Outer Diameter (mm) | Clear Passage Width (3-wing) (mm) | Clear Passage Width (4-wing) (mm) | Cornice Height (mm) | Door Height (mm) |
1600 | 1730 | 700 | 1055 | 300 | 2200 |
1800 | 1930 | 800 | 1195 | 300 | 2200 |
2000 | 2130 | 900 | 1335 | 300 | 2200 |
2200 | 2330 | 1000 | 1475 | 300 | 2200 |
2600 | 2730 | 1200 | 1755 | 300 | 2200 |
2800 | 2930 | 1300 | 1895 | 300 | 2200 |
3000 | 3130 | 1400 | 2035 | 300 | 2200 |
3200 | 3330 | 1500 | 2175 | 300 | 2200 |
3600 | 3730 | 1700 | 2455 | 300 | 2200 |
3800 | 3930 | 1800 | 2595 | 300 | 2200 |

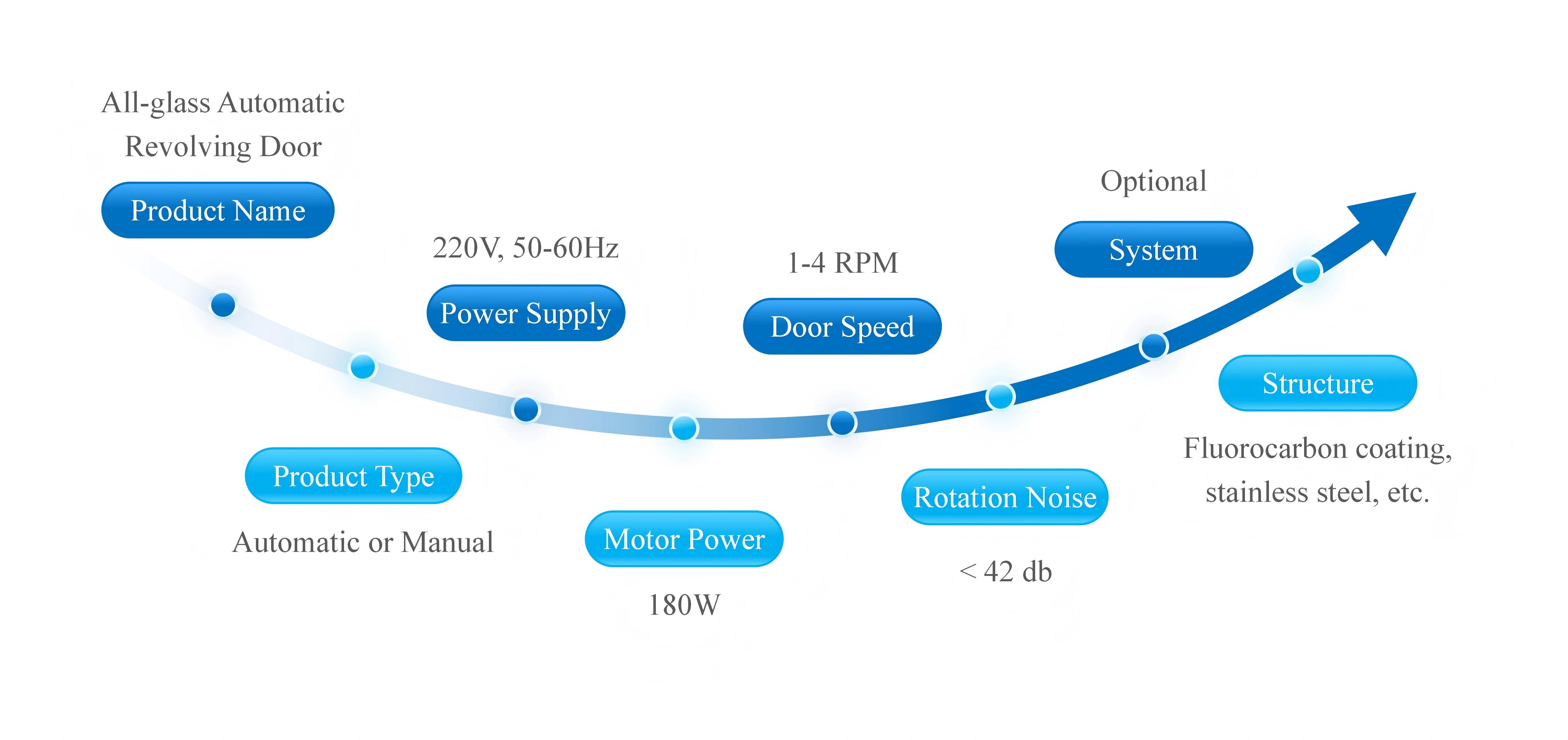

Technical Parameters

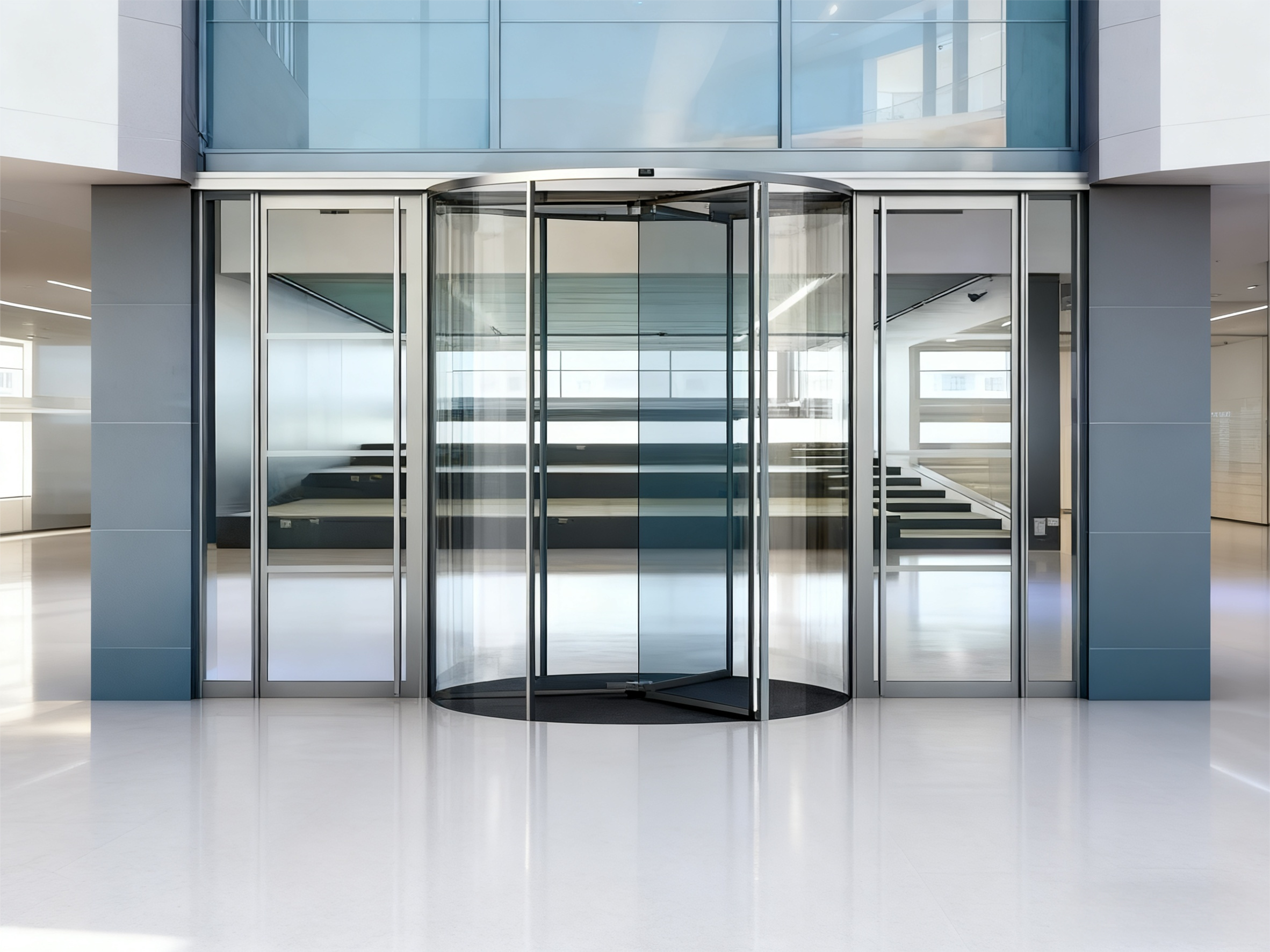

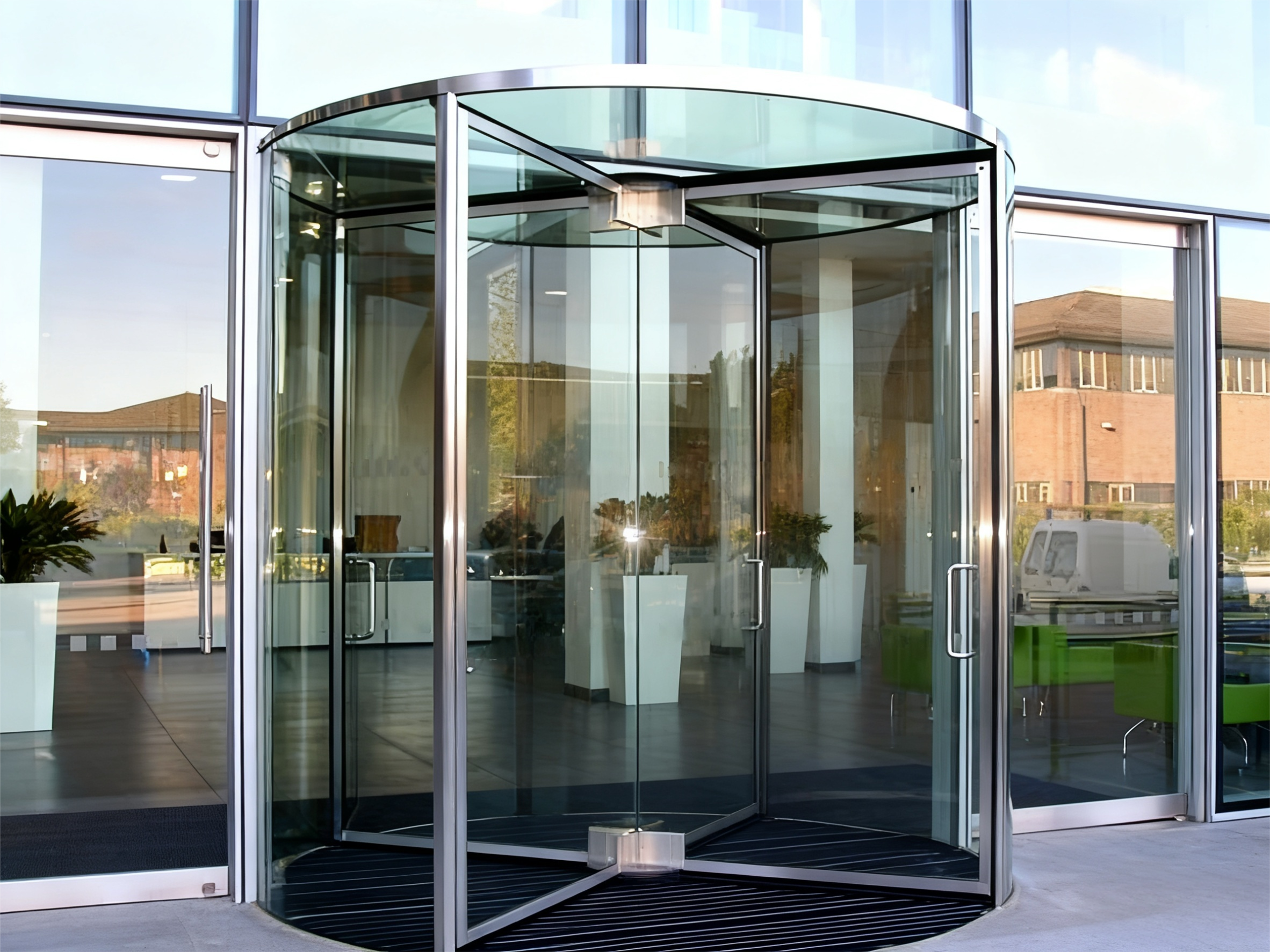

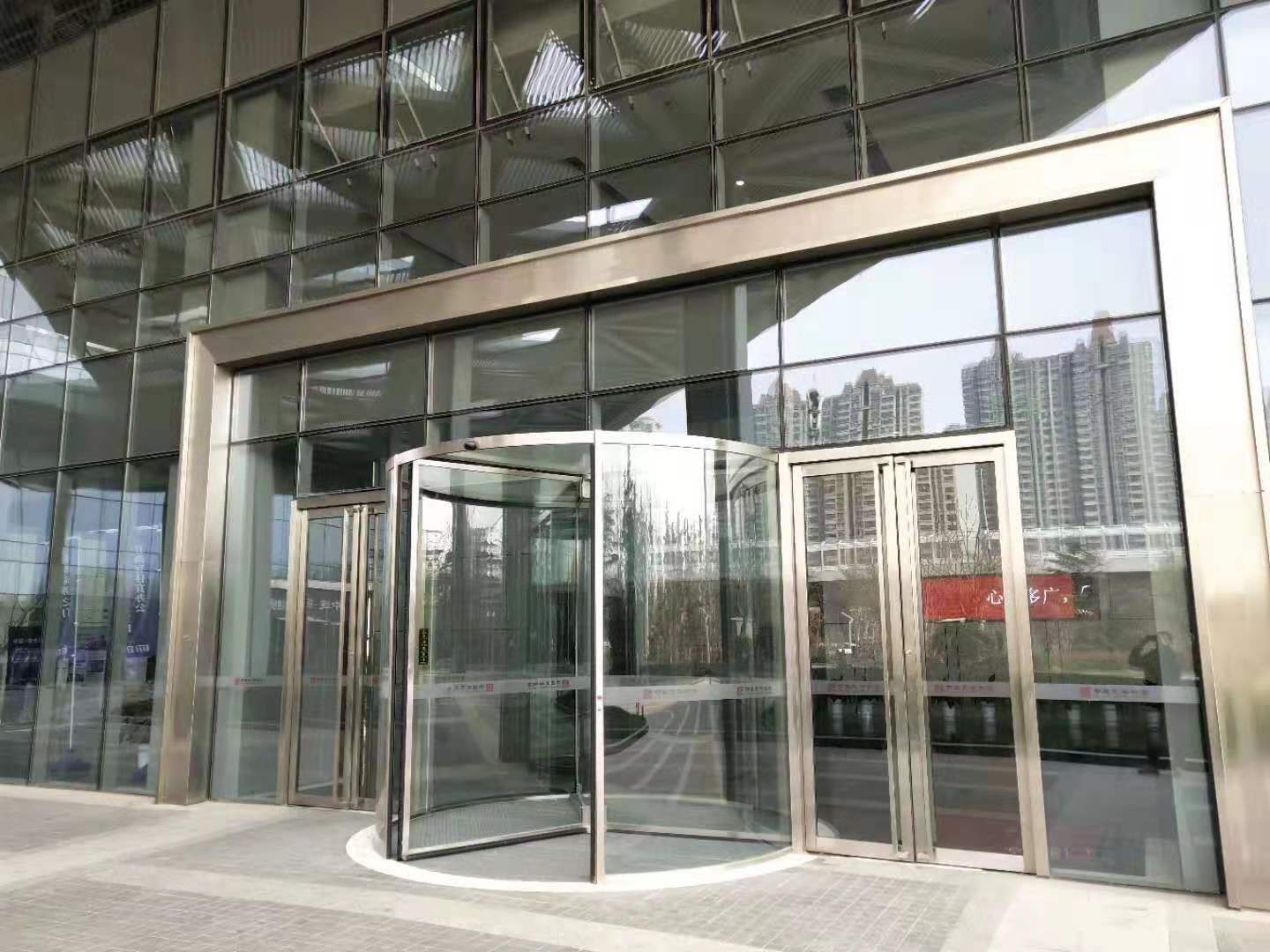

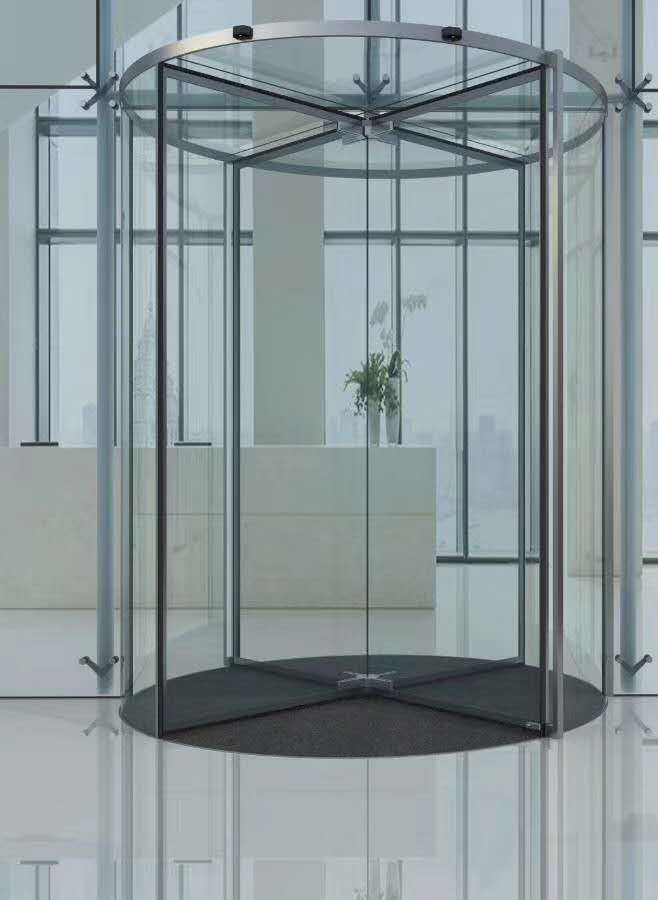

Crystal /All-glass Revolving Door Features
Anti-Pinch Switch
Install in the column strip and door panel strip, when people hit the strip, the door will stop revolving, protect people not hurt
Emergency Stop
Guarantee the pedestrian safety by emergency stop button when on emergency
Disabled Function
Decrease the door rotation speed, to serve the elder, children and disabled people
LED Display Function
The screen display the operation status of the door, and it can output the error code to track and eliminate the malfunction
Office Building
Exhibition Hall
Star-rated Hotels
Shopping Mall
