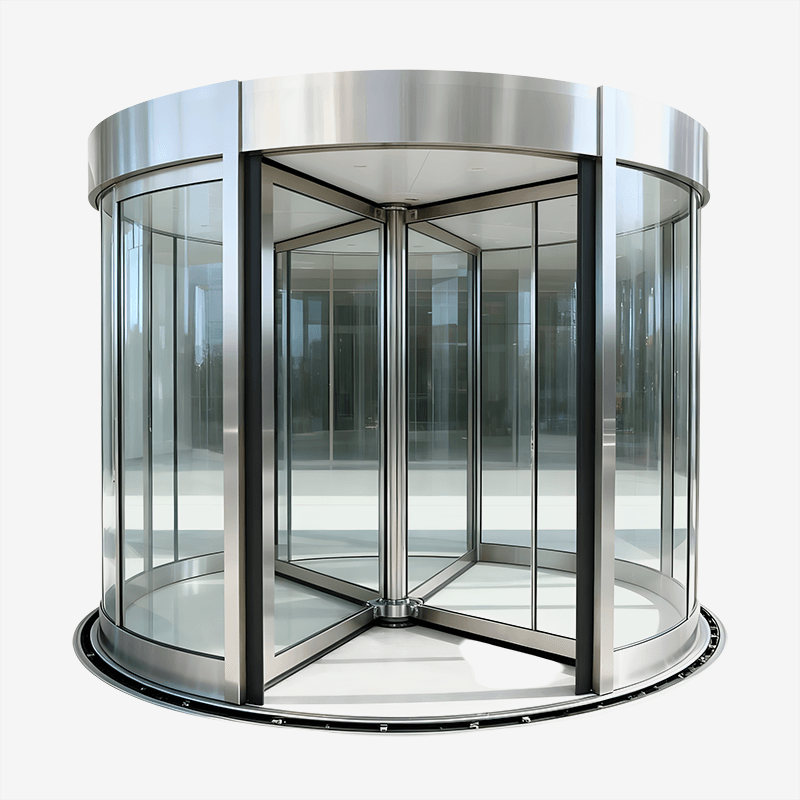

4 Wings Automatic Revolving Door


Availability:

Quantity:

Inquire Add to Basket

Model:
RD4
Brand:
OTMAKER
Code:
ATMAKER4WD001

4-wing automatic revolving door is a high-end entrance and exit device commonly used in commercial buildings (such as hotels, office buildings, shopping malls, and airports). Their four wings evenly divide the revolving space, combining functionality with aesthetics.

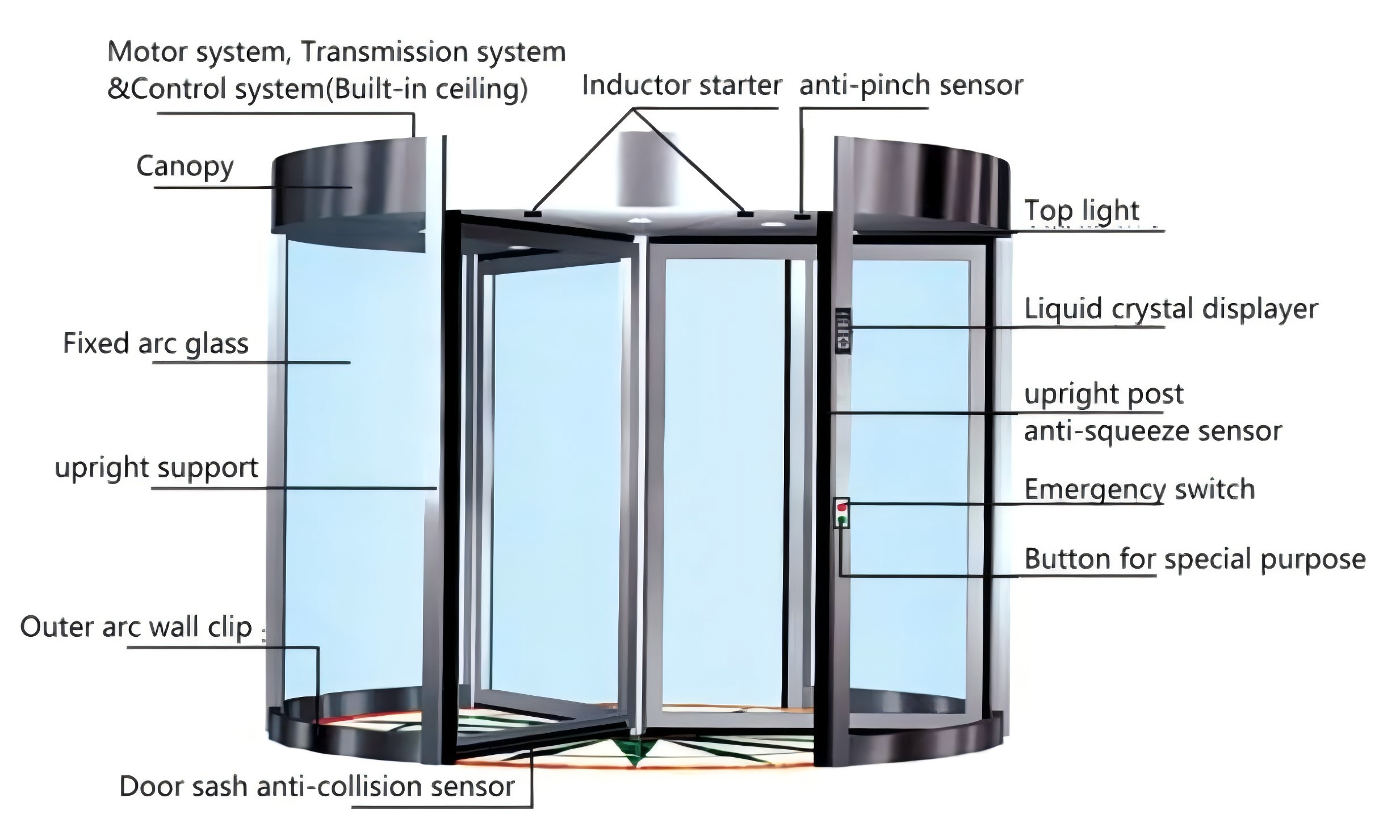

Product Structure Introduction

eaffc636a3b74eb8f4a86582babdfef4

Core Advantage

In terms of traffic efficiency, they utilize a "double-entry, double-exit" bidirectional mode. At a standard speed (0.5-0.8 r/min), they can accommodate 300-500 people per hour without waiting periods, making them ideal for high-traffic scenarios.
Regarding energy efficiency, two to three sections of the door are always closed during rotation, reducing air conditioning energy consumption by 30%-50%.
In terms of safety, they are equipped with microwave radar and infrared sensors for anti-pinch protection. High-end models support emergency escape. The doors are constructed of 304 stainless steel, double-layer tempered glass, and feature a long-life motor for exceptional durability.
In terms of appearance, the large expanse of glass enhances the sense of transparency. The frame color and glass texture can be customized to suit a variety of architectural styles, and the dynamic rotation adds a sense of ceremony.
In addition, they also provide dust and noise protection, and protect against strong winds. It supports triggering methods such as radar, card swipe, and facial recognition, enabling remote fault monitoring and speed adjustment. It also requires no space for opening and closing, allowing for integration with access control and other equipment, resulting in high space utilization. It's an ideal entryway choice that balances functionality and user experience.

Specifications

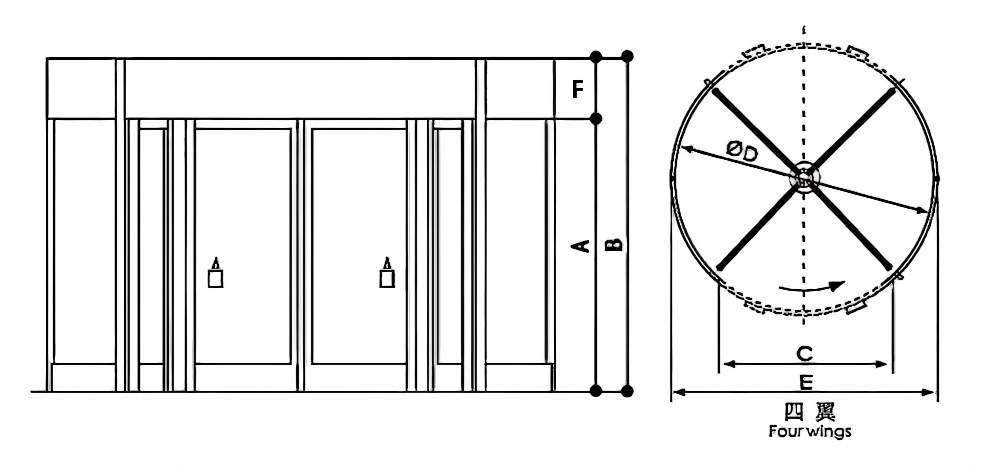

Technical Drawings

四翼门图纸

Regular Size

Parameter Name	Standard Size（mm）
Door Type	XZM-*18	XZM-*21	XZM-*24	XZM-*27	XZM-*30	XZM-*32	XZM-*36
Outer Wall Inner Diameter（D）	1740	2040	2340	2640	2940	3140	3540
Outer Wall Diameter (E)	1800	2100	2400	2700	3000	3200	3600
Max Outer Diameter (E)	1820	2120	2420	2720	3020	3220	3620
Opening Width (C)	822	979	1136	1293	1450	1554	1764
Entrance Height (A)	2200~2600
Total Height of Door Crown (F)	300	300	300	300	300	300	300
Total Door Height (B)	2500~2900

Technical Parameters

Product Name: 4-Wing Automatic Revolving Door
Power Supply: 220 V/50HZ
Safety Device: 16A or 2×10A
High Speed Adjustment Range: 0.5-5.5 rpm (adjustable)
Electronic Components: Main Motor: Germany Lence; Sliding door unit: Germany dormakaba;Safety anti-pinch brand: Japan OMRON, Germany P+F, Japan Panasonic.
Sensor: Radar (infrared) motion sensor,rubber and infrared anti-collision anti-pinch sensor
Raw Materials: 1）Door material: aluminium alloy frame, steel structure crossbeam; 5mm-thick aluminium column.2）Glass: 8mm tempered glass.
Application Scenario: Office buildings, Shopping malls, Hotels, Banks, Exhibition centers, Government buildings.
