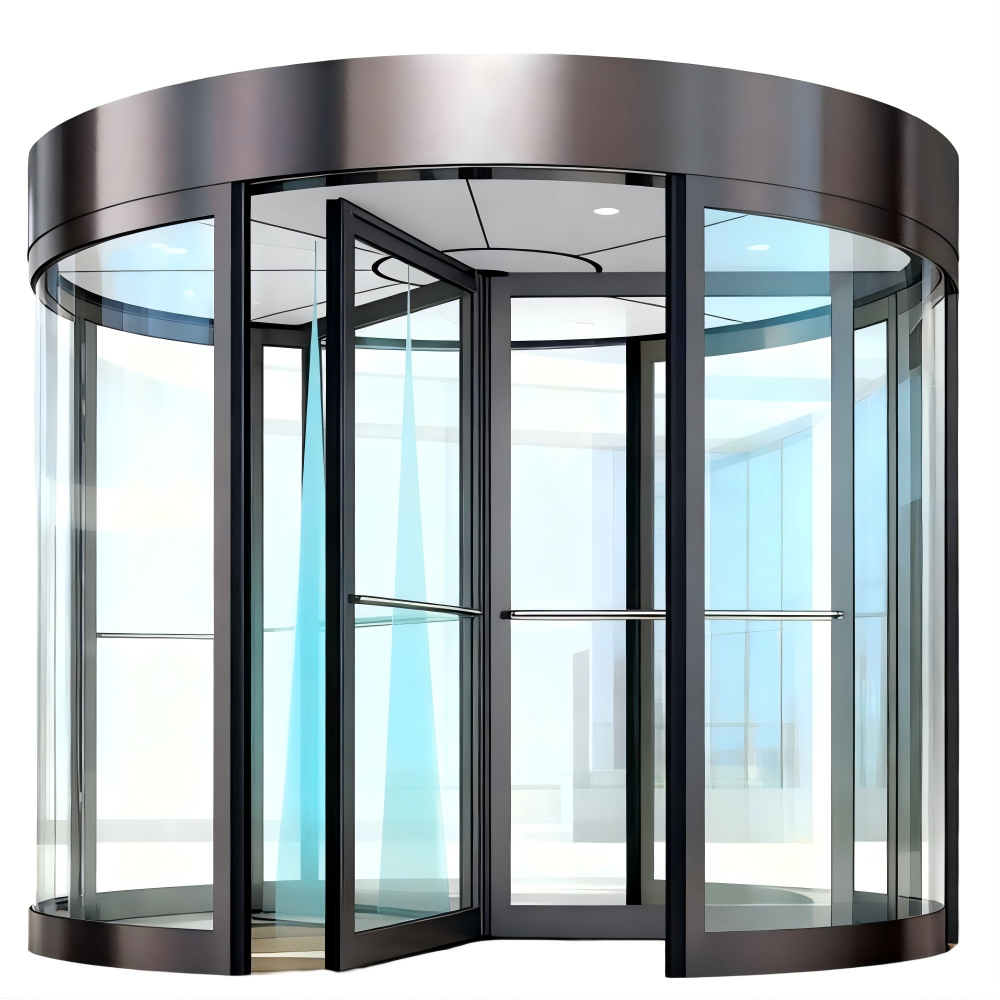

3 Wings Automatic Revolving Door


Availability:

Quantity:

Inquire Add to Basket

Model:
RD3
Brand:
OTMAKER
Code:
ATMAKER3WD001

Three-wing automatic revolving doors feature three wings that rotate 120° evenly, creating an efficient and adaptable entrance and exit system. They are widely used in shopping malls, hotels, office buildings, exhibition halls, and other venues.

Product Structure Introduction

中英文结构

Specifications

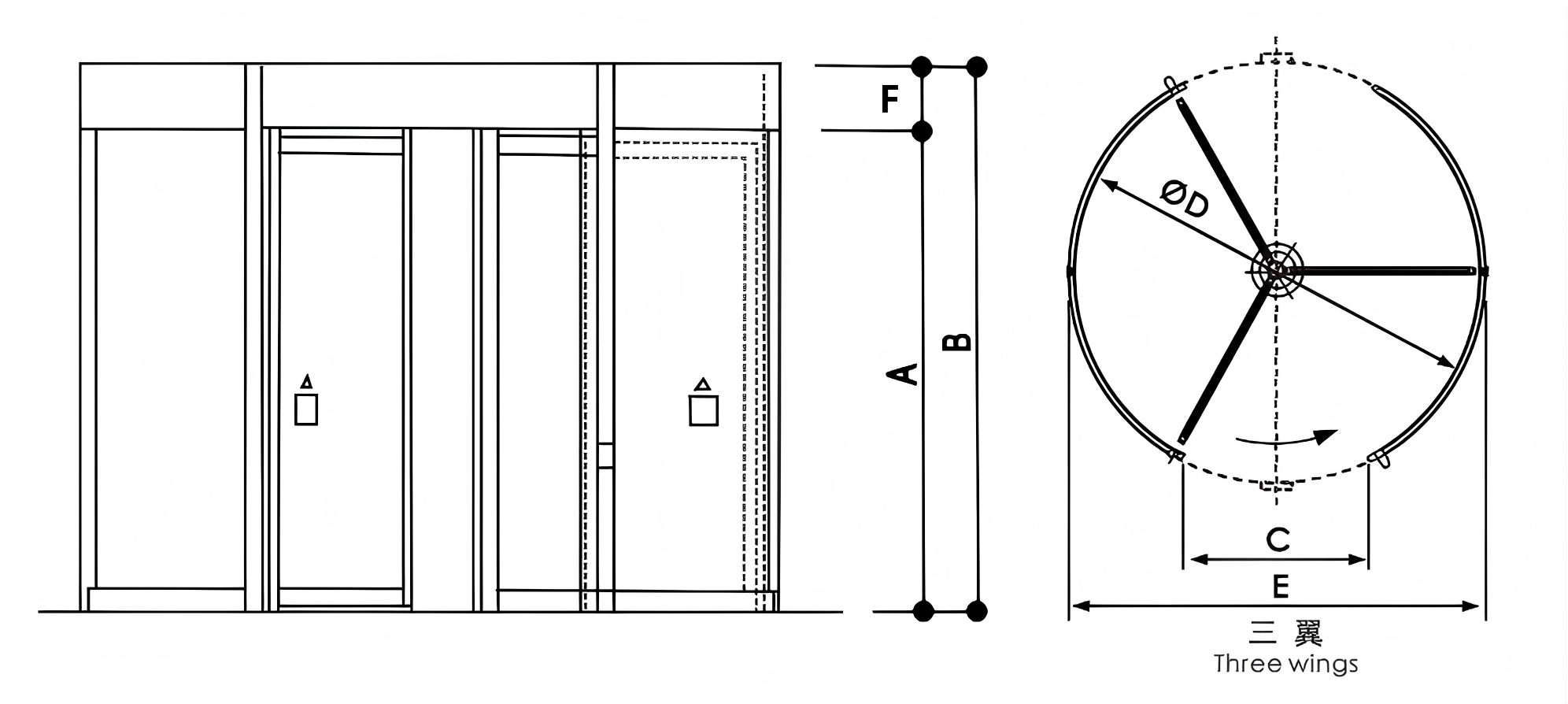

Technical Drawings

三翼门正视图纸

Parameter Name	Standard Size（mm）
Door Type	XZM-*18	XZM-*21	XZM-*24	XZM-*27	XZM-*30	XZM-*32	XZM-*36
Outer Wall Inner Diameter（D）	1740	2040	2340	2640	2940	3140	3540
Outer Wall Diameter (E)	1800	2100	2400	2700	3000	3200	3600
Max Outer Diameter (E)	1820	2120	2420	2720	3020	3220	3620
Opening Width (C)	822	979	1136	1293	1450	1554	1764
Entrance Height (A)	2200~2600
Total Height of Door Crown (F)	300	300	300	300	300	300	300
Total Door Height (B)	2500~2900

Technical Parameters

Product Name	3-Wing Automatic Revolving Door
Application Scenario	Office buildings, Shopping malls, Hotels, Banks, Exhibition centers, Government buildings.
Technical Parameters	1. Door material: aluminium alloy frame, steel structure crossbeam; 5mm-thick aluminium vertical column. 2.Glass: 8mm tempered glass (optional). 3. Main motor: Germany Lence; Sliding door unit: Germany dormakaba, international first-tier brand; Safety anti-pinch brand: Japan OMRON, Germany P+F, Japan Panasonic.
Safety Device	16A or 2×10A
Sensor	Radar (infrared) motion sensor, Rubber and infrared anti-collision anti-pinch sensor
Intelligent computer control,multilevel control system, frequency control of motor speed
